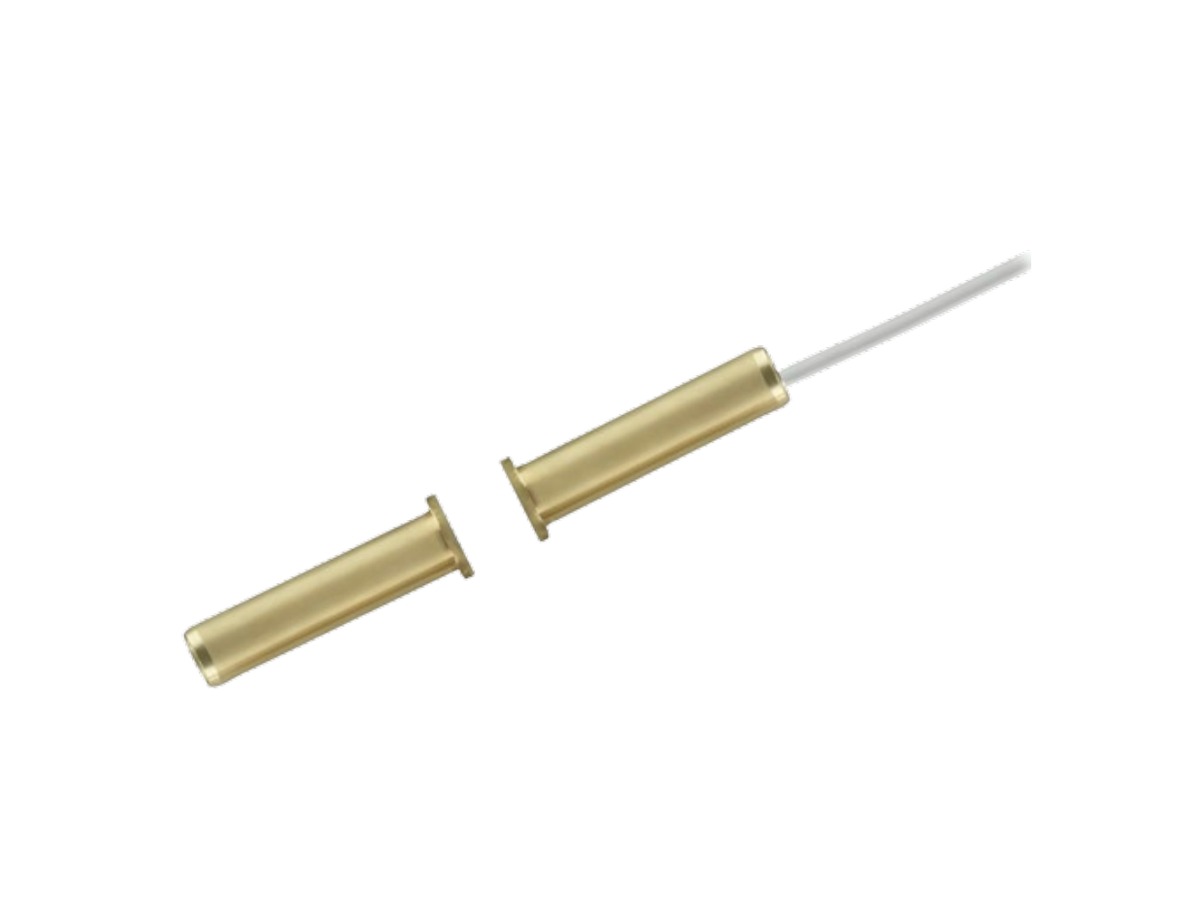

Door Sensors
Door and window contacts report open or closed state to the room controller. On guest entry the system triggers the welcome scene; when a balcony door is left open the thermostat adjusts rather than fighting the outside air, which is one of the largest avoidable energy losses in a guest room.
Control functions
Entry detectionWindow / balcony statusClimate interlockGuest arrival trigger
Key features
- Reed switch and magnet — no power draw when idle
- Entry detection for welcome lighting
- Balcony and window open detection
- Automatic climate adjustment when a door is left open
- Normally open or normally closed, specified at order
- Discreet 19 × 25 mm body in white, brown or black
- Anti-fire ABS available
Specifications
- Sensor type
- Reed switch
- Alarm type
- Wired signal
- Detection range
- 20 – 30 mm
- Sensing gap
- 20 – 40 mm
- Alarm output
- Normally open or closed, optional
- Current / voltage
- 0.5 A / 100 V / 10 W
- Size
- 19 × 25 mm
- Material
- ABS (anti-fire available)
- Colour
- White / brown / black
- Network
- Wired
Specifications are indicative and may vary by configuration. Contact us to confirm details for your project.
