DasKlug Hardware
Touch Panels

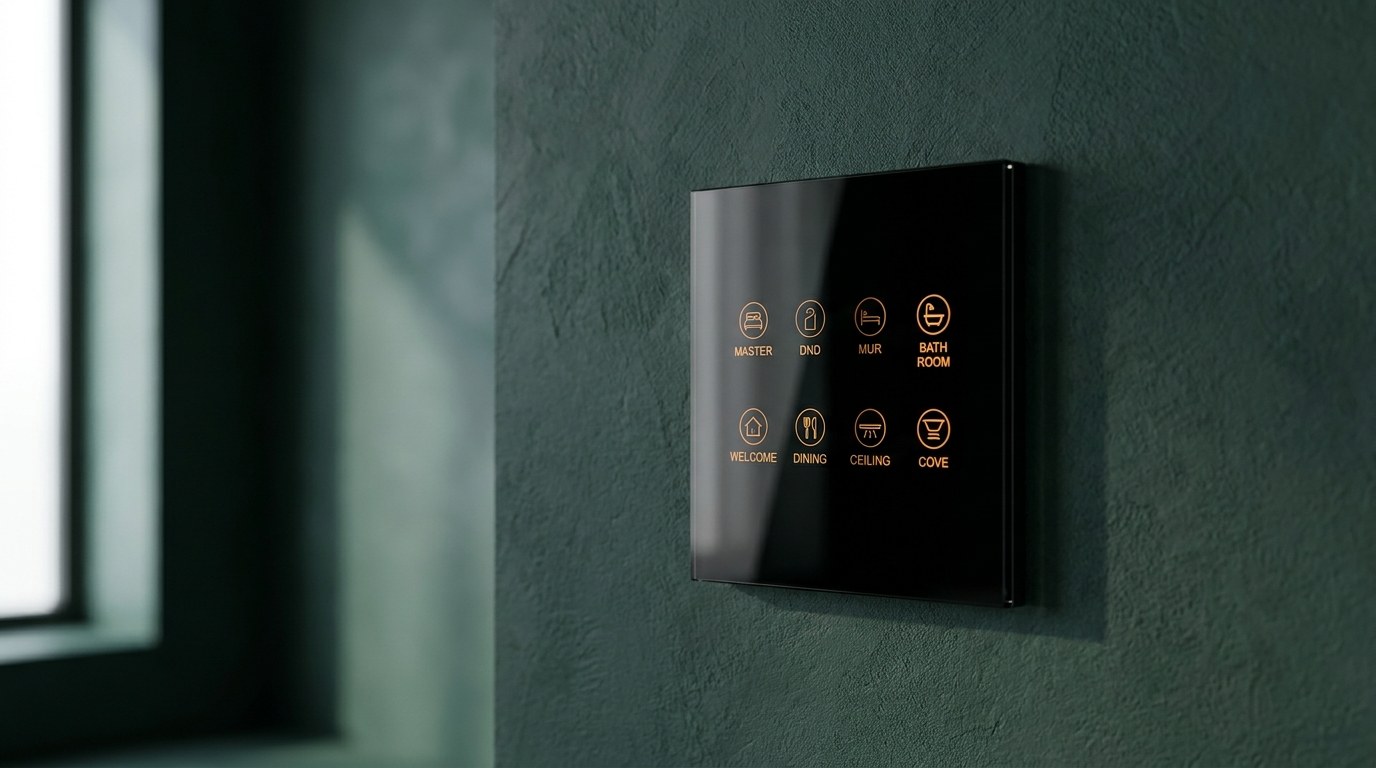

The in-room touch panel is the guest’s primary interface with the room. A 4 mm tempered glass front over high-sensitivity LED touch keys, with laser-engraved icons and LED backlighting so the panel is legible at night without lighting up the room. Icons and labelling are customised per project, so the panel names the room’s actual fixtures rather than showing generic symbols.
The range

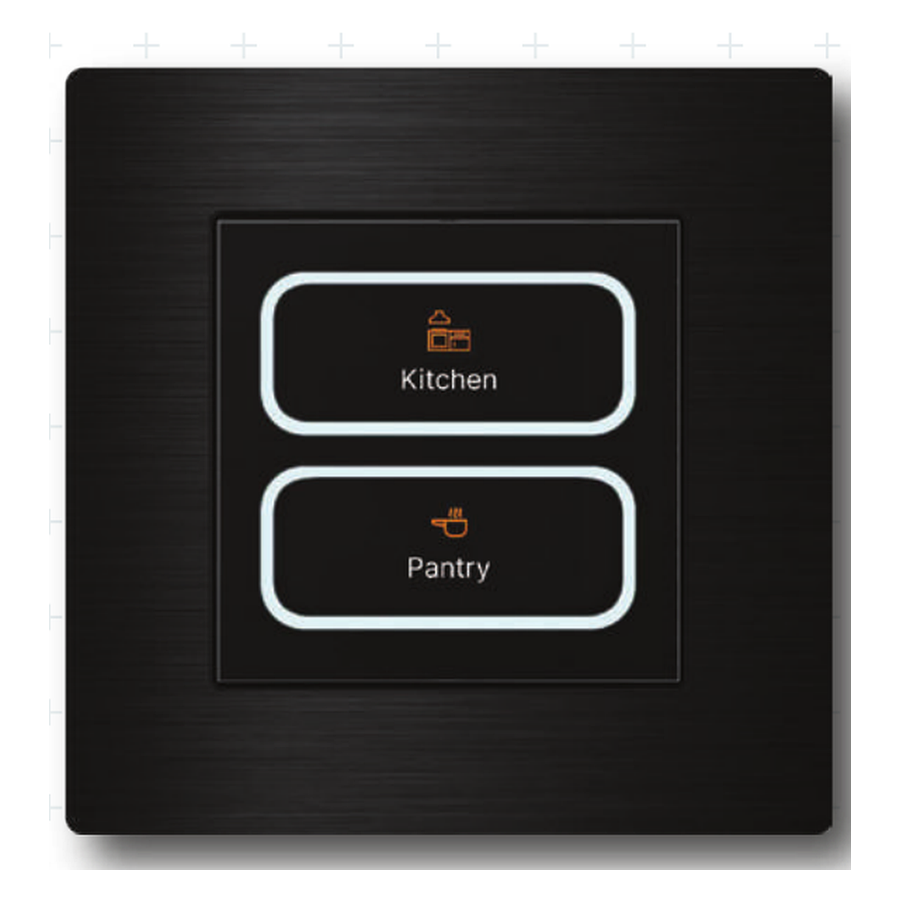

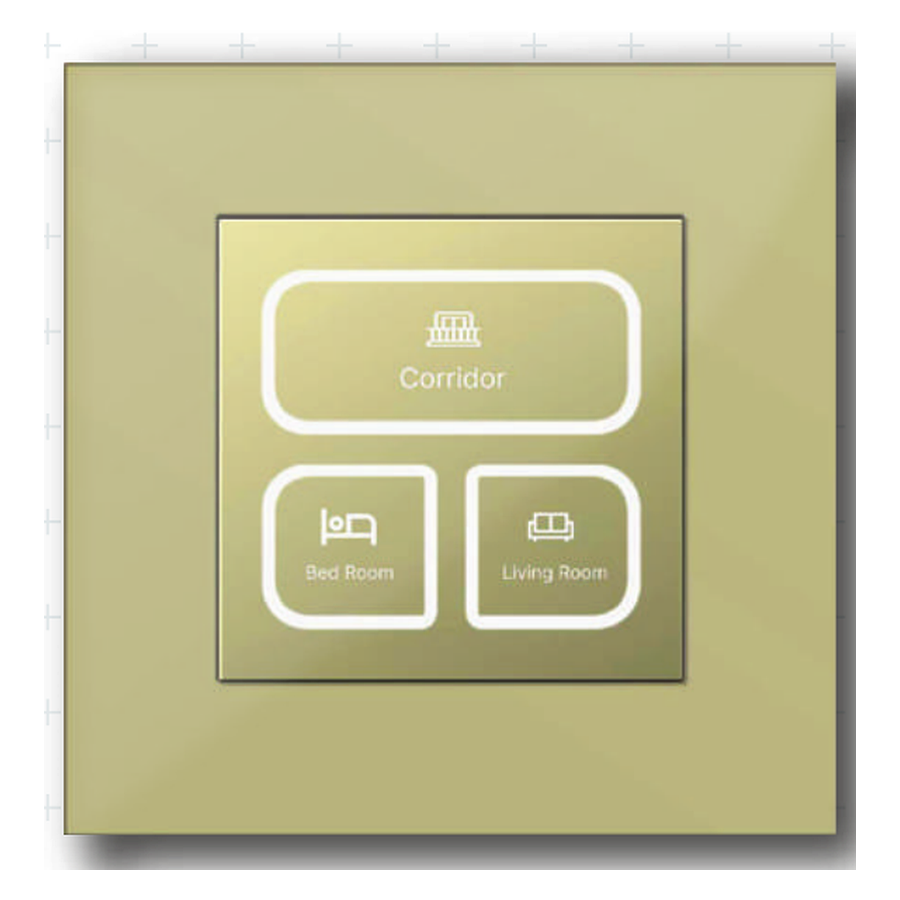

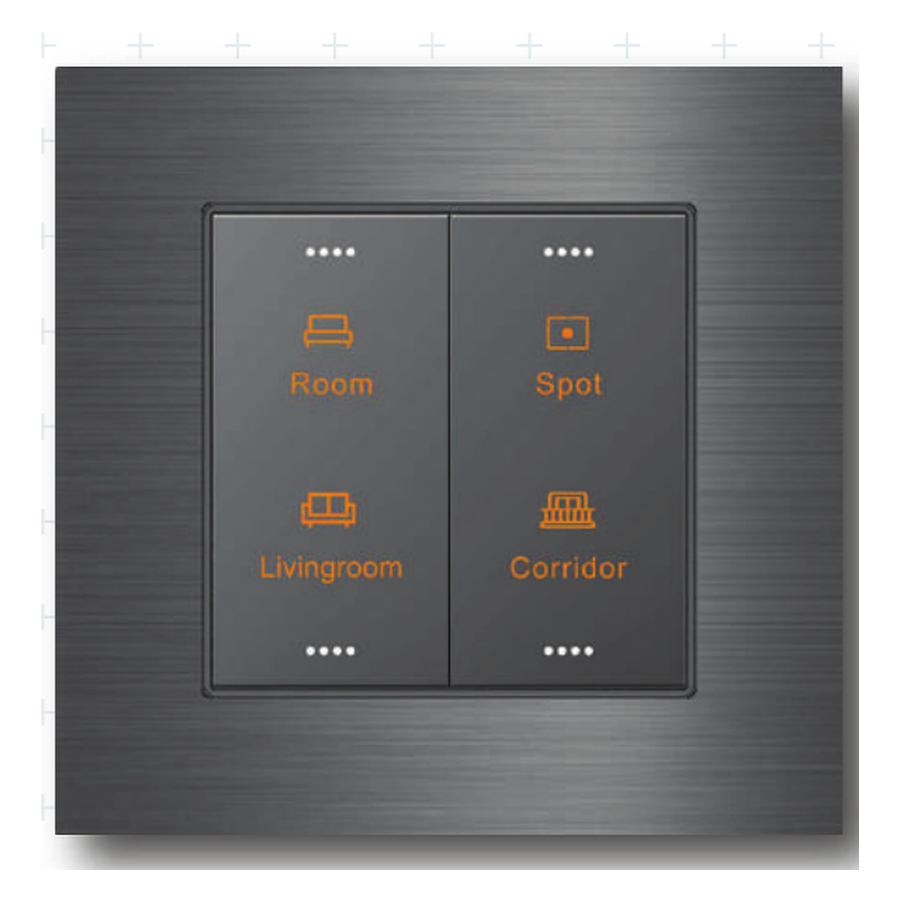

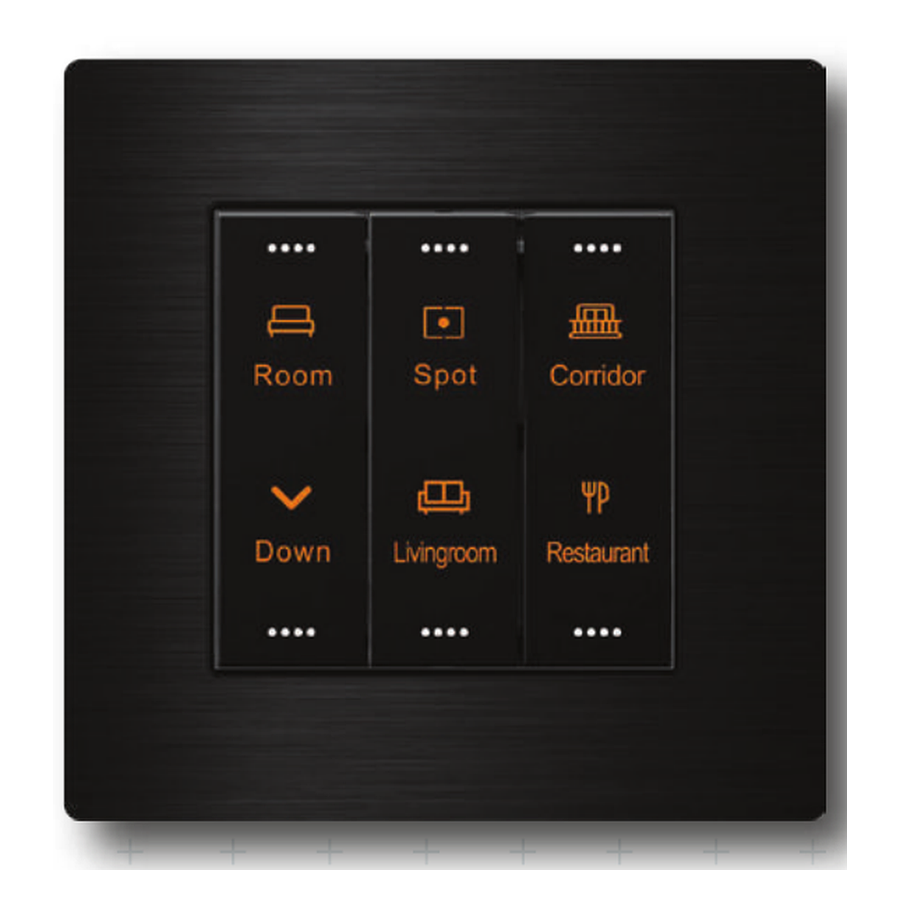

Configurations & finishes
One design language across every gang count. Panels are supplied in black glass, black and gunmetal brushed metal and champagne gold, with icons and labelling engraved to your room layout.
Control functions
Key features
- 1 to 8 gang configurations from a single design language
- Laser-engraved, project-specific icons and labelling
- LED backlighting for night-time legibility
- High-sensitivity LED touch keys rated to 1,000,000 touches
- Networked RS485 Modbus — no proprietary bus required
- Wide 12–36 V DC supply range simplifies installation
- Finishes in black glass, black and gunmetal brushed metal, champagne gold
Specifications
- Technology
- Networked RS485 Modbus protocol
- Power supply
- 12 V – 36 V DC
- Material
- 4 mm tempered glass
- Touch type
- High-sensitivity LED touch panel
- Size (1–6 button)
- 86 × 86 mm
- Size (8 button)
- 105 × 86 mm
- Working temperature
- −10 °C to 60 °C
- Working humidity
- 10 – 95 % RH
- Service life
- Up to 1,000,000 touches
- Backlighting
- LED backlit buttons
- Touch icons
- Customisable, laser engraved
Specifications are indicative and may vary by configuration. Contact us to confirm details for your project.
Need help specifying?
Tell us about the property and we will advise on panel counts, finishes and controller sizing.
Talk to our team
