Presence Sensors

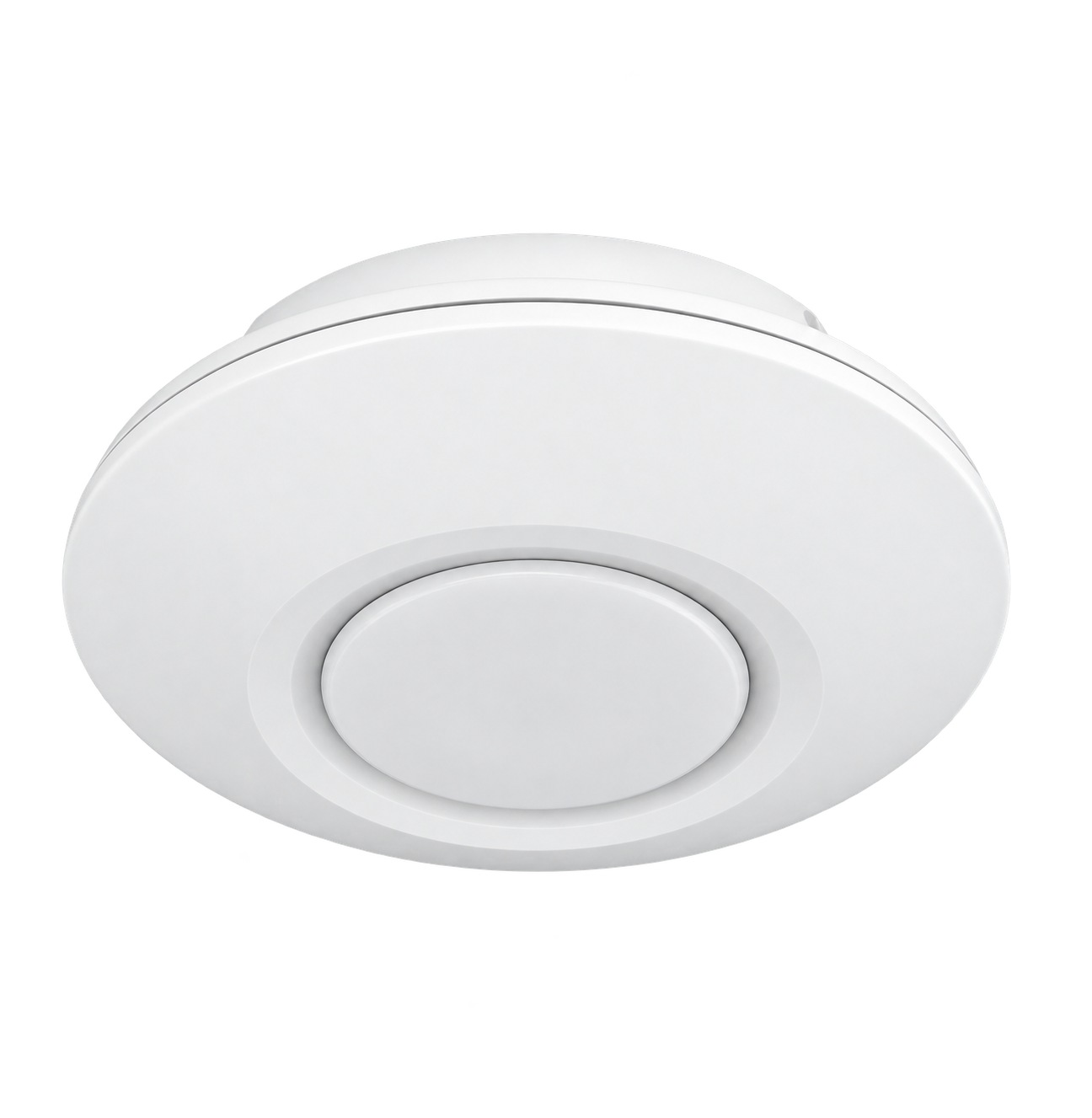

A 24 GHz millimetre-wave radar sensor rather than a passive infrared one. The distinction matters in a guest room: PIR only sees movement, so it will switch a room to "vacant" while someone is asleep or sitting still reading. Radar detects minor motion and breathing, so the room stays correctly occupied. Detection area, hold time and daylight threshold are all adjustable by remote after installation.
Control functions
Presence detectionDaylight harvestingWelcome lightingVacancy setback
Key features
- Detects breathing and minor motion, not just movement
- Adjustable detection area — 100 % / 75 % / 50 % / 25 %
- Hold time from 5 seconds to 20 minutes
- Built-in daylight sensor for daylight harvesting
- Configured by MH10 remote after install
- Ø105 × 23 mm, surface mounted, low visual impact
- NO/NC dry contact output
Specifications
- Radar frequency
- 24 – 24.5 GHz, ISM band
- Transmitting power
- 5 mW max
- Input voltage
- 12 – 24 V DC
- Working current
- 50 mA @12 V, 30 mA @24 V
- Working power
- ≤ 1 W @24 V DC
- Output signal
- NO/NC dry contact (NO default)
- Motion detection
- 3 – 4 m at 3 m height
- Minor motion
- 2.5 – 3.5 m at 3 m height
- Presence detection
- 2.5 – 3.5 m at 3 m height
- Beam angle (3 dB)
- 100° horizontal, 100° vertical
- Mounting height
- 2.5 – 4.0 m (typical 3 m)
- Hold time
- 5 s / 30 s / 1 / 3 / 5 / 10 / 20 min
- Daylight sensor
- 5 – 150 Lux, or disabled
- Dimensions
- Ø105 × 23 mm
- Working temperature
- 0 °C to +50 °C
- IP rating
- IP20
- Certification
- FCC / RED, RoHS compliant
Specifications are indicative and may vary by configuration. Contact us to confirm details for your project.
