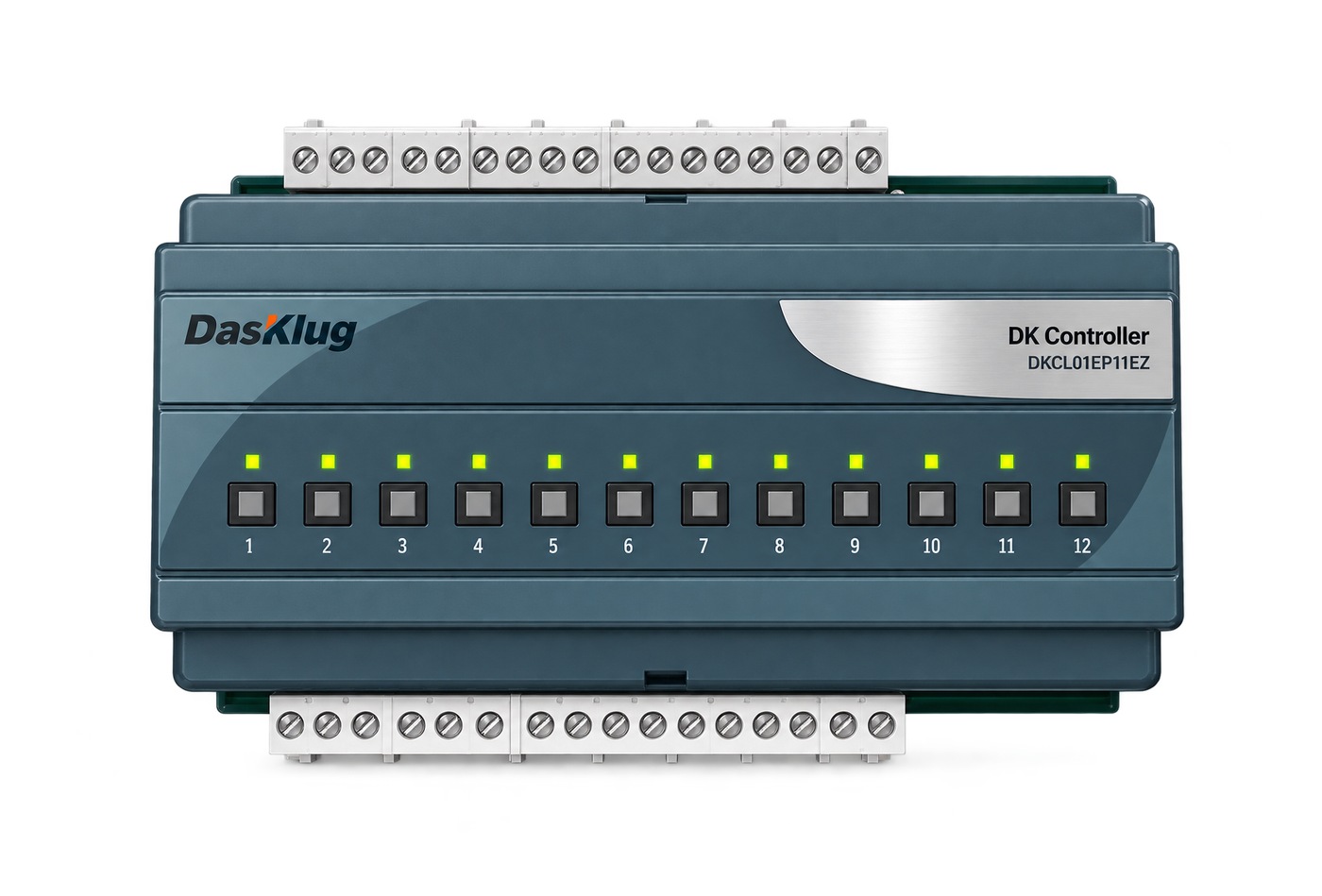

The DK Controller is the room’s brain. Twelve relays rated 10 A each drive the lighting and power circuits directly, while fifteen inputs take dry contacts, analog signals and DS18B20 temperature sensors. It speaks Ethernet, RS-485, Wi-Fi and Bluetooth simultaneously, so it integrates with a building system without needing a separate gateway, and firmware updates over the air from the DasKlug CMS.
Control functions
Scene controlSequence controlZone scenesLoad switchingThermostat actuationIR control
Key features
- 12 relay outputs, 10 A each, with COM / NC / NO per channel
- 7 analog inputs, 8 digital dry contact inputs
- DS18B20 temperature input supporting multiple sensors
- 2 analog actuator outputs (0–5 V or 0–10 V) for thermostat valves
- IR emitter AUX interface for split-unit air conditioning
- Ethernet, RS-485, Wi-Fi 2.4 GHz and Bluetooth 4.2
- Scene and sequence control, multiple scenes per zone
- Light protection delay 0–60 min, mass turn-on delay 0–25 s
- OTA upgrade via DasKlug CMS
Specifications
- Operating voltage
- DC 12 V
- Relay outputs
- 12 × NO/NC, max 10 A each
- Relay rating
- 277 VAC 10 A or 125 VAC 12 A
- Analog inputs
- 7
- Digital inputs
- 8 channel dry contact
- Temperature input
- 1 × DS18B20, multiple sensors
- Actuator outputs
- 2 × analog 0–5 V or 0–10 V
- IR interface
- 3.5 mm jack AUX
- Ethernet
- 10/100BASE-T, TCP/IP
- RS-485
- Half-duplex, Modbus RTU
- Wi-Fi
- 2.4 GHz
- Bluetooth
- V4.2 BR/EDR and BLE
- Protection
- Input overvoltage, anti-polarity
- Programming
- DasKlug Utility Tool, OTA via CMS
Specifications are indicative and may vary by configuration. Contact us to confirm details for your project.
